배관자재

배관용 스테인레스 파이프 일반 배관용 스테인레스 파이프(SU) 심레스 스테인레스 파이프 기계구조용 스테인레스 파이프 스테인레스 판, 코일 스테인레스 앵글, 평철, 환봉 배관자재 밸브 물홈통&구조용 부속 가공품 철강류

배관자재



엘보| 티| 레듀샤| 캡| 플렌지| 콘넥타| 죠인트

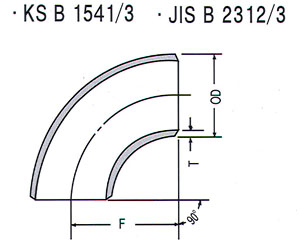

엘보


Nominal
Pipe Size
(Inch) 		Outside
Diameter
(OD) 		Wall Thickness(T) Center
to End 		Weight(kg)
Sch. 5S Sch. 10S Sch. 20S Sch. 40S F Sch. 5S Sch. 10S Sch. 20S Sch. 40S
½ 21.7 1.65 2.1 2.5 2.8 38.1 0.05 0.06 0.07 0.08
¾ 27.2 1.65 2.1 2.5 2.9 38.1 0.06 0.08 0.09 0.10
1 34.0 1.65 2.8 3.0 3.4 38.1 0.08 0.13 0.14 0.15
1¼ 42.7 1.65 2.8 3.0 3.6 47.6 0.13 0.21 0.22 0.26
1½ 48.6 1.65 2.8 3.0 3.7 57.2 0.17 0.28 0.30 0.37
2 60.5 1.65 2.8 3.5 3.9 76.2 0.29 0.48 0.59 0.65
2½ 76.3 2.10 3.0 3.5 5.2 95.3 0.55 0.81 0.94 1.37
3 89.1 2.10 3.0 4.0 5.5 114.3 0.81 1.14 1.50 2.04
3½ 101.6 2.10 3.0 4.0 5.7 133.4 1.08 1.53 2.01 2.82
4 114.3 2.10 3.0 4.0 6.0 152.4 1.39 1.97 2.60 3.84
5 139.8 2.80 3.4 5.0 6.6 190.5 2.83 3.42 4.97 6.48
6 165.2 2.80 3.4 5.0 7.1 228.6 4.03 4.87 7.09 9.94
8 216.3 2.80 4.0 6.5 8.2 304.8 7.06 10.00 16.10 20.10
10 267.4 3.40 4.0 6.5 9.3 381.0 13.20 16.60 25.00 35.40
12 318.5 4.00 4.5 6.5 10.3 457.2 22.30 25.90 35.90 56.20
14 355.6 4.00 4.8 7.9 11.1 533.4 28.80 34.60 56.90 79.10
16 406.4 4.20 4.8 7.9 12.7 609.6 39.80 45.30 74.50 118.00
18 457.2 4.20 4.8 7.9 14.3 685.8 50.40 57.40 94.50 169.00
20 508.0 4.80 5.5 7.9 15.1 762.0 71.00 82.10 117.00 210.00
22 558.8 4.80 5.5 9.5 15.9 838.2 85.90 99.50 170.00 267.00
24 609.6 5.50 6.4 9.5 17.5 914.4 118.00 136.00 202.00 366.00

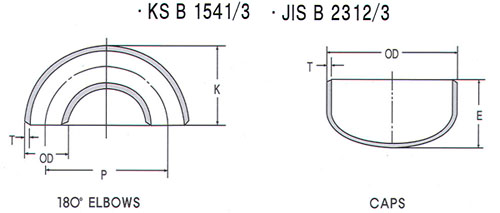

Nominal
Pipe Size
(Inch) 		Outside
Diameter
(OD) 		Wall Thickness(T) Center
to Center 		Back
to Face 		Overall
Length 		Weight(kg)
Sch.10S Sch.20S Sch.40S P K E Sch. 10S Sch. 20S Sch. 40S
180˚E Cap 180˚E Cap 180˚E Cap
½ 21.7 2.1 2.5 2.8 76.2 49.0 25.4 0.12 0.03 0.15 0.03 0.20 0.04
¾ 27.2 2.1 2.5 2.9 76.2 51.7 25.4 0.16 0.04 0.18 0.04 0.21 0.05
1 34.0 2.8 3.0 3.4 76.2 55.1 38.1 0.26 0.09 0.31 0.10 0.31 0.11
1¼ 42.7 2.8 3.0 3.6 95.2 69.0 38.1 0.43 0.11 0.53 0.12 0.53 0.14
1½ 48.6 2.8 3.0 3.7 114.4 81.5 38.1 0.58 0.13 0.61 0.14 0.75 0.17
2 60.5 2.8 3.5 3.9 152.4 106.5 38.1 0.99 0.17 1.16 0.21 1.32 0.24
2½ 76.3 3.0 3.5 5.2 190.6 133.5 38.1 1.65 0.23 1.89 0.28 2.77 0.42
3 89.1 3.0 4.0 5.5 228.6 158.9 50.8 2.29 0.37 3.02 0.48 4.10 0.67
3½ 101.6 3.0 4.0 5.7 266.8 184.2 63.5 3.08 0.55 4.04 0.70 5.67 1.13
4 114.3 3.0 4.0 6.0 304.8 209.6 63.5 3.96 0.59 5.23 0.78 7.72 1.17
5 139.8 3.4 5.0 6.6 381.0 260.4 76.2 6.87 0.99 9.99 1.44 13.02 1.90
6 165.2 3.4 5.0 7.1 457.2 311.2 88.9 9.79 1.39 14.30 1.99 19.98 2.83
8 216.3 4.0 6.5 8.2 609.6 413.0 101.6 20.10 2.38 32.40 4.05 40.40 5.11
10 267.4 4.0 6.5 9.3 762.0 514.7 127.0 31.20 4.13 50.30 6.23 71.20 8.92
12 318.5 4.5 6.5 10.3 914.4 616.5 152.4 52.10 6.39 72.60 8.89 114.0 13.10
14 355.6 4.8 7.9 11.1 1066.8 711.2 165.1 69.20 7.99 113.80 13.20 160.20 18.60
16 406.4 4.8 7.9 12.7 1219.2 812.8 177.8 90.60 10.10 149.00 16.70 239.20 26.70
18 457.2 4.8 7.9 14.3 1317.6 914.4 203.2 117.00 12.90 191.10 21.30 341.10 41.50
20 508.0 5.5 7.9 15.1 1524.0 1016.0 228.6 165.40 18.50 283.40 31.80 455.40 51.30
22 558.8 5.5 9.5 15.9 1676.4 1117.6 254.0 200.30 22.60 345.50 38.80 568.30 65.80
24 609.6 6.4 9.5 17.5 1828.8 1828.8 266.7 275.10 30.10 409.40 45.10 744.10 84.20

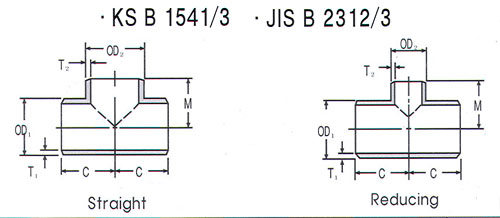

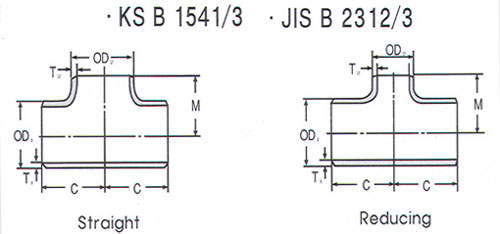

티


Nominal
Pipe Size
(Inch) 		Outside
Diameter
(OD) 		Wall Thickness(T) Center to End Weight(kg)
Sch 10S Sch 20S Sch 40S C M Sch.10S Sch.20S Sch.40S
OD₁ OD₂ T₁ T₂ T₁ T₂ T₁ T₂
½ × ½ 21.7 21.7 2.1 2.1 2.5 2.5 2.8 2.8 25.4 25.4 0.07 0.08 0.09
¾ × ¾ 27.2 27.2 2.1 2.1 2.5 2.5 2.9 2.9 28.6 28.6 0.09 0.11 0.13
¾ × ½ 27.2 21.7 2.1 2.1 2.5 2.5 2.9 2.8 28.6 28.6 0.07 0.09 0.10
1 × 1
 34.0 34.0 2.8 2.8 3.0 3.0 3.4 3.4 38.1 38.1 0.21 0.22 0.25
¾ × ¾ 34.0 27.2 2.8 2.1 3.0 2.5 3.4 2.9 38.1 38.1 0.16 0.16 0.17
¾ × ½ 34.0 21.7 2.8 2.1 3.0 2.5 3.4 2.8 38.1 38.1 0.16 0.16 0.16
1¼ × 11/4
 42.7 42.7 2.8 2.8 3.0 3.0 3.6 3.6 47.6 47.6 0.34 0.36 0.42
¾ × 1 42.7 34.0 2.8 2.8 3.0 3.0 3.6 3.4 47.6 47.6 0.32 0.34 0.40
¾ × ¾ 42.7 27.2 2.8 2.1 3.0 2.5 3.6 2.9 47.6 47.6 0.28 0.31 0.33
¾ × ½ 42.7 21.7 2.8 2.1 3.0 2.5 3.6 2.8 47.6 47.6 0.289 0.311 0.365
1½ × 1½
 48.6 48.6 2.8 2.8 3.0 3.0 3.7 3.7 57.2 57.2 0.47 0.50 0.60
¾ × 1¼ 48.6 42.7 2.8 2.8 3.0 3.0 3.7 3.6 57.2 57.2 0.45 0.48 0.58
¾ × 1 48.6 34.0 2.8 2.8 3.0 3.0 3.7 3.4 57.2 57.2 0.43 0.46 0.55
¾ × ¾ 48.6 27.2 2.8 2.1 3.0 2.5 3.7 2.9 57.2 57.2 0.37 0.43 0.47
¾ × ½ 48.6 21.7 2.8 2.1 3.0 2.5 3.7 2.8 57.2 57.2 0.395 0.425 0.511
2 × 2
 60.5 60.5 2.8 2.8 3.5 3.5 3.9 3.9 63.5 63.5 0.64 0.79 0.87
¾ × 1½ 60.5 48.6 2.8 2.8 3.5 3.0 3.9 3.7 63.5 60.3 0.60 0.73 0.81
¾ × 1¼ 60.5 42.7 2.8 2.8 3.5 3.0 3.9 3.6 63.5 57.2 0.58 0.70 0.79
¾ × 1 60.5 34.0 2.8 2.8 3.5 3.0 3.9 3.4 63.5 50.8 0.55 0.67 0.74
¾ × ¾ 60.5 27.2 2.8 2.1 3.5 2.5 3.9 2.9 63.5 44.5 0.45 0.59 0.68
2½ × 2½
76.3 76.3 3.0 3.0 3.5 3.5 5.2 5.2 76.2 76.2 1.03 1.20 1.71
¾ × 2 76.3 60.5 3.0 2.8 3.5 3.5 5.2 3.9 76.2 69.9 0.95 1.11 1.56
¾ × 1½ 76.3 48.6 3.0 2.8 3.5 3.0 5.2 3.7 76.2 66.7 0.92 1.05 1.51
¾ × 1¼ 76.3 42.7 3.0 2.8 3.5 3.0 5.2 3.6 76.2 63.5 0.90 1.03 1.48
¾ × 1 76.3 34.0 3.0 2.8 3.5 3.0 5.2 3.4 76.2 57.2 0.867 1.00 1.44
3 × 3 89.1 89.1 3.0 3.0 4.0 4.0 5.5 5.5 85.7 85.7 1.35 1.78 2.41
¾ × 2½ 89.1 76.3 3.0 3.0 4.0 3.5 5.5 5.2 85.7 82.6 1.30 1.68 2.29
¾ × 2 89.1 60.5 3.0 2.8 4.0 3.5 5.5 3.9 85.7 76.2 1.22 1.59 2.12
¾ × 1½ 89.1 48.6 3.0 2.8 4.0 3.0 5.5 3.7 85.7 73.0 1.18 1.53 2.06
¾ × 1¼ 89.1 42.7 3.0 2.8 4.0 3.0 5.5 3.6 85.7 69.9 1.16 1.51 2.03
4 × 4 114.3 114.3 3.0 3.0 4.0 4.0 6.0 6.0 104.8 104.8 2.12 2.80 4.12
¾ × 3 114.3 89.1 3.0 3.0 4.0 4.0 6.0 5.5 104.8 98.4 1.99 2.68 3.83
¾ × 2½ 114.3 76.3 3.0 3.0 4.0 3.5 6.0 5.2 104.8 95.3 1.93 2.52 3.71
¾ × 2 114.3 60.5 3.0 2.8 4.0 3.5 6.0 3.9 104.8 88.9 1.85 2.44 3.53
¾ × 1½ 114.3 48.6 3.0 2.8 4.0 3.0 6.0 3.7 104.8 85.7 1.82 2.38 3.47
5 × 5 139.8 139.8 3.4 3.4 5.0 5.0 6.6 6.6 123.8 123.8 3.45 5.01 6.54
¾ × 4 139.8 114.3 3.4 3.0 5.0 4.0 6.6 6.0 123.8 117.5 3.22 4.63 6.13
¾ × 3 139.8 89.1 3.4 3.0 5.0 4.0 6.6 5.5 123.8 111.1 3.09 4.49 5.83
¾ × 2½ 139.8 76.3 3.4 3.0 5.0 3.5 6.6 5.2 123.8 108.0 3.04 4.35 5.71
¾ × 2 139.8 60.5 3.4 2.8 5.0 3.5 6.6 3.9 123.8 104.8 2.97 4.29 5.56
6 × 6 165.2 165.2 3.4 3.4 5.0 5.0 7.1 7.1 142.9 142.9 4.70 6.84 9.58
¾ × 5 165.2 139.8 3.4 3.4 5.0 5.0 7.1 6.6 142.9 136.5 4.49 6.54 9.08
¾ × 4 165.2 114.3 3.4 3.0 5.0 5.0 7.1 6.0 142.9 130.2 4.27 6.16 8.67
¾ × 3 165.2 89.1 3.4 3.0 5.0 5.0 7.1 5.5 142.9 123.8 4.14 5.99 8.38
¾ × 2½ 165.2 76.3 3.4 3.0 5.0 3.5 7.1 5.2 142.9 120.7 4.08 5.88 8.25


Nominal
Pipe Size
(Inch) 		Outside
Diameter
(OD) 		Wall Thickness(T) Center to End Weight(kg)
Sch 10S Sch 20S Sch 40S C M Sch.10S Sch.20S Sch.40S
OD₁ OD₂ T₁ T₂ T₁ T₂ T₁ T₂
8 × 8 216.3 216.3 4.0 4.0 6.5 6.5 8.2 8.2 177.8 177.8 8.91 14.30 17.90
¾ × 6 216.3 165.2 4.0 3.4 6.5 5.0 8.2 7.1 177.8 168.3 8.26 13.10 16.60
¾ × 5 216.3 139.8 4.0 3.4 6.5 5.0 8.2 6.6 177.8 161.9 8.06 12.90 16.10
¾ × 4
 216.3 114.3 4.0 3.0 6.5 4.0 8.2 6.0 177.8 155.6 7.84 12.50 15.70
10 × 10 267.4 267.4 4.0 4.0 6.5 6.5 9.3 9.3 215.9 215.9 13.40 21.50 30.40
¾ × 8 267.4 216.3 4.0 4.0 6.5 6.5 9.3 8.2 215.9 203.2 12.70 20.40 28.50
¾ × 6
 267.4 165.2 4.0 3.4 6.5 5.0 9.3 7.1 215.9 193.7 12.00 19.20 27.20
¾ × 5 267.4 139.8 4.0 3.4 6.5 5.0 9.3 6.6 215.9 190.5 11.9 19.0 26.8
¾ × 4 267.4 114.3 4.0 3.0 6.5 4.0 9.3 6.0 215.9 184.2 11.6 18.6 26.4
12 × 12 318.5 318.5 4.5 4.5 6.5 6.5 10.3 10.3 254.0 254.0 21.00 30.10 47.20
¾ × 10
 318.5 267.4 4.5 4.0 6.5 6.5 10.3 9.3 254.0 241.3 19.80 28.80 44.60
¾ × 8 318.5 216.3 4.5 4.0 6.5 6.5 10.3 8.2 254.0 228.6 19.20 27.70 42.70
¾ × 6 318.5 165.2 4.5 3.4 6.5 5.0 10.3 7.1 254.0 219.1 17.40 25.80 39.30
¾ × 5 318.5 139.8 4.5 3.4 6.5 5.0 10.3 6.6 254.0 215.9 18.3 26.3 41.0
14 × 14 355.6 355.6 4.8 4.8 7.9 7.9 11.1 11.1 279.4 279.4 27.30 44.80 62.40
¾ × 12
 355.6 318.5 4.8 4.5 7.9 6.5 11.1 10.3 279.4 269.9 25.80 43.20 59.80
¾ × 10 355.6 267.4 4.8 4.0 7.9 6.5 11.1 9.3 279.4 257.2 24.70 41.00 57.30
¾ × 8 355.6 216.3 4.8 4.0 7.9 6.5 11.1 8.2 279.4 247.7 23.70 39.70 42.00
¾ × 6 355.6 165.2 4.8 3.4 7.9 5.0 11.1 7.1 279.4 238.1 22.60 38.00 54.50
16 × 16 406.4 406.4 4.8 4.8 7.9 7.9 12.7 12.7 304.8 304.8 33.70 55.20 88.00
¾ × 14
 406.4 355.6 4.8 4.8 7.9 7.9 12.7 11.1 304.8 304.8 31.50 53.50 86.00
¾ × 12 406.4 318.5 4.8 4.5 7.9 6.5 12.7 10.3 304.8 295.3 30.20 51.20 82.40
¾ × 10 406.4 267.4 4.8 4.0 7.9 6.5 12.7 9.3 304.8 282.6 28.90 49.00 79.00
¾ × 8 406.4 216.3 4.8 4.0 7.9 6.5 12.7 8.2 304.8 273.1 27.70 46.90 75.90
18 × 18 457.2 457.2 4.8 4.8 7.9 7.9 14.3 14.3 342.9 342.9 42.70 70.00 125.00
¾ × 16 457.2 406.4 4.8 4.8 7.9 7.9 14.3 12.7 342.9 330.2 40.10 67.50 120.10
¾ × 14 457.2 355.6 4.8 4.8 7.9 7.9 14.3 11.1 342.9 330.2 38.40 64.70 115.00
¾ × 12 457.2 318.5 4.8 4.5 7.9 6.5 14.3 10.3 342.9 320.7 36.80 62.00 114.00
¾ × 10 457.2 267.4 4.8 4.0 7.9 6.5 14.3 9.3 342.9 308.0 35.30 59.40 112.00
20 × 20 508.0 508.0 5.5 5.5 7.9 7.9 15.1 15.1 381.0 381.0 61.00 86.60 163.00
¾ × 18 508.0 457.2 5.5 4.8 7.9 7.9 15.1 14.3 381.0 368.3 57.50 84.00 159.20
¾ × 16 508.0 406.4 5.5 4.8 7.9 7.9 15.1 12.7 381.0 355.6 55.00 80.50 152.60
¾ × 14 508.0 355.6 5.5 4.8 7.9 7.9 15.1 11.1 381.0 355.6 52.70 77.10 149.00
¾ × 12 508.0 318.5 5.5 4.5 7.9 6.5 15.1 10.3 381.0 346.1 50.60 73.90 147.00
22 × 22 558.8 558.8 5.5 5.5 9.5 9.5 15.9 15.9 419.1 419.1 74.10 126.20 198.00
¾ × 20 558.8 508.0 5.5 5.5 9.5 7.9 15.9 15.1 419.1 406.4 71.80 124.00 195.00
¾ × 18 558.8 457.2 5.5 4.8 9.5 7.9 15.9 14.3 419.1 393.7 68.80 118.80 187.60
¾ × 16 558.8 406.4 5.5 4.8 9.5 7.9 15.9 12.7 419.1 381.0 65.90 113.80 179.80
24 × 24 609.6 609.6 6.4 6.4 9.5 9.5 17.5 17.5 431.8 431.8 93.90 139.40 252.00
¾ × 22 609.6 558.8 6.4 5.5 9.5 9.5 17.5 15.9 431.8 431.8 90.70 136.40 248.80
¾ × 20 609.6 508.0 6.4 5.5 9.5 7.9 17.5 15.1 431.8 431.8 86.90 130.60 241.30
¾ × 18 609.6 457.2 6.4 4.8 9.5 7.9 17.5 14.3 431.8 431.8 83.20 125.20 241.80

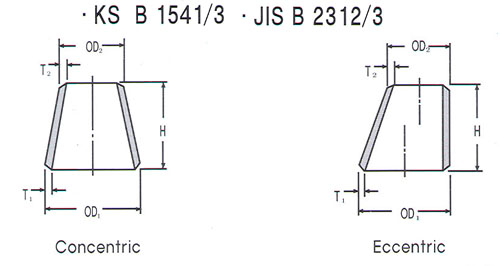

레듀샤


Nominal
Pipe Size
(Inch) 		Outside
Diameter
(OD) 		Wall Thickness(T) End to End Weight(kg)
Sch 10S Sch 20S Sch 40S H Sch.10S Sch.20S Sch.40S
OD₁ OD₂ T₁ T₂ T₁ T₂ T₁ T₂
¾ × ½ 27.2 21.7 2.1 2.1 2.5 2.5 2.9 2.8 38.1 0.04 0.05 0.06
1 × ¾ 34.0 27.2 2.8 2.1 3.0 2.5 3.4 2.9 50.8 0.10 0.10 0.12
¾ × ½ 34.0 21.7 2.8 2.1 3.0 2.5 3.4 2.8 50.8 0.09 0.09 0.11
1¼ × 1
 42.7 34.0 2.8 2.8 3.0 3.0 3.6 3.4 50.8 0.13 0.13 0.16
¾ × ¾ 42.7 27.2 2.8 2.1 3.0 2.5 3.6 2.9 50.8 0.11 0.12 0.14
¾ × ½ 42.7 21.7 2.8 2.1 3.0 2.5 3.6 2.8 50.8 - - -
1½ × 1¼
 48.6 42.7 2.8 2.8 3.0 3.0 3.7 3.6 63.5 0.19 0.20 0.24
¾ × 1 48.6 34.0 2.8 2.8 3.0 3.0 3.7 3.4 63.5 0.17 0.18 0.22
¾ × ¾ 48.6 27.2 2.8 2.1 3.0 2.5 3.7 2.9 63.5 0.16 0.17 0.20
¾ × ½ 48.6 21.7 2.8 2.1 3.0 2.5 3.7 2.9 63.5 - - -
2 × 1½
 60.5 48.6 2.8 2.8 3.5 3.0 3.9 3.7 76.2 0.27 0.34 0.37
¾ × 1¼ 60.5 42.7 2.8 2.8 3.5 3.0 3.9 3.6 76.2 0.26 0.32 0.35
¾ × 1 60.5 34.0 2.8 2.8 3.5 3.0 3.9 3.4 76.2 0.24 0.29 0.32
¾ × ¾ 60.5 27.2 2.8 2.1 3.5 2.5 3.9 2.9 76.2 0.21 0.25 0.29
2½ × 2
 76.3 60.5 3.0 2.8 3.5 3.5 5.2 3.9 88.9 0.43 0.50 0.72
¾ × 1½ 76.3 48.6 3.0 2.8 3.5 3.0 5.2 3.7 88.9 0.40 0.46 0.66
¾ × 1¼ 76.3 42.7 3.0 2.8 3.5 3.0 5.2 3.6 88.9 0.38 0.42 0.61
¾ × 1 76.3 34.0 3.0 2.8 3.5 3.0 5.2 3.4 88.9 - - -
3 × 2½
89.1 76.3 3.0 3.0 4.0 3.5 5.5 5.2 88.9 0.53 0.69 0.93
¾ × 2 89.1 60.5 3.0 2.8 4.0 3.5 5.5 3.9 88.9 0.48 0.63 0.85
¾ × 1½ 89.1 48.6 3.0 2.8 4.0 3.0 5.5 3.7 88.9 0.44 0.58 0.78
¾ × 1¼ 89.1 42.7 3.0 2.8 4.0 3.0 5.5 3.6 88.9 - - -
4 × 3 114.3 89.1 3.0 3.0 4.0 4.0 6.0 5.5 101.6 0.75 0.99 1.45
¾ × 2½ 114.3 76.3 3.0 3.0 4.0 3.5 6.0 5.2 101.6 0.71 0.93 1.37
¾ × 2 114.3 60.5 3.0 2.8 4.0 3.5 6.0 3.9 101.6 0.66 0.86 1.27
¾ × 1½ 114.3 48.6 3.0 2.8 4.0 3.0 6.0 3.7 101.6 0.60 0.79 1.12
5 × 4 139.8 114.3 3.4 3.0 5.0 4.0 6.6 6.0 127.0 1.32 1.92 2.50
¾ × 3 139.8 89.1 3.4 3.0 5.0 4.0 6.6 5.5 127.0 1.20 1.74 2.27
¾ × 2½ 139.8 76.3 3.4 3.0 5.0 3.5 6.6 5.2 127.0 1.15 1.66 2.16
¾ × 2 139.8 60.5 3.4 2.8 5.0 3.0 6.6 3.9 127.0 - - -
6 × 5 165.2 139.8 3.4 3.4 5.0 5.0 7.1 6.6 139.7 1.75 2.55 3.57
¾ × 4 165.2 114.3 3.4 3.0 5.0 4.0 7.1 6.0 139.7 1.62 2.36 3.30
¾ × 3 165.2 89.1 3.4 3.0 5.0 4.0 7.1 5.5 139.7 1.50 2.18 3.04
¾ × 2½ 165.2 76.3 3.4 3.0 5.0 3.5 7.1 5.2 139.7 - - -

Nominal
Pipe Size
(Inch) 		Outside
Diameter
(OD) 		Wall Thickness(T) End to End Weight(kg)
Sch 10S Sch 20S Sch 40S H Sch.10S Sch.20S Sch.40S
OD₁ OD₂ T₁ T₂ T₁ T₂ T₁ T₂
8 × 6 216.3 165.2 4.0 3.4 6.5 5.0 8.2 7.1 152.4 2.85 4.57 5.71
¾ × 5 216.3 139.8 4.0 3.4 6.5 5.0 8.2 6.6 152.4 2.70 4.33 5.40
¾ × 4
 216.3 114.3 4.0 3.0 6.5 4.0 8.2 6.0 152.4 2.56 4.10 5.10
10 × 8 267.4 216.3 4.0 4.0 6.5 6.5 9.3 8.2 177.8 4.21 6.22 8.78
¾ × 6
 267.4 165.2 4.0 3.4 6.5 5.0 9.3 7.1 177.8 3.87 6.22 8.78
¾ × 5 267.4 139.8 4.0 3.4 6.5 5.0 9.3 6.6 177.8 3.30 5.70 8.21
¾ × 4 267.4 114.3 4.0 3.0 6.5 4.0 9.3 6.0 177.8 - - -
12 × 10
 318.5 267.4 4.5 4.0 6.5 6.5 10.3 9.3 203.2 6.55 9.40 14.70
¾ × 8 318.5 216.3 4.5 4.0 6.5 6.5 10.3 8.2 203.2 6.11 8.77 13.70
¾ × 6 318.5 165.2 4.5 3.4 6.5 5.0 10.3 7.1 203.2 5.73 7.81 12.40
¾ × 5 318.5 139.8 4.5 3.4 6.5 5.0 10.3 6.6 203.2 - - -
14 × 12
 355.6 318.5 4.8 4.5 7.9 6.5 11.1 10.3 330.2 13.20 21.50 29.90
¾ × 10 355.6 267.4 4.8 4.0 7.9 6.5 11.1 9.3 330.2 12.10 19.80 27.50
¾ × 8 355.6 216.3 4.8 4.0 7.9 6.5 11.1 8.2 330.2 11.20 18.20 25.30
¾ × 6 355.6 165.2 4.8 3.4 7.9 5.0 11.1 7.1 330.2 10.30 16.70 23.20
16 × 14
 406.4 355.6 4.8 4.8 7.9 7.9 12.7 11.1 355.6 16.10 26.20 41.60
¾ × 12 406.4 318.5 4.8 4.5 7.9 6.5 12.7 10.3 355.6 14.80 24.10 38.30
¾ × 10 406.4 267.4 4.8 4.0 7.9 6.5 12.7 9.3 355.6 13.60 22.20 35.20
¾ × 8 406.4 216.3 4.8 4.0 7.9 6.5 12.7 8.2 355.6 12.50 20.40 32.40
18 × 16 457.2 406.4 4.8 4.8 7.9 7.9 14.3 12.7 381.0 19.50 31.90 56.90
¾ × 14 457.2 355.6 4.8 4.8 7.9 7.9 14.3 11.1 381.0 17.90 29.30 52.30
¾ × 12 457.2 318.5 4.8 4.5 7.9 6.5 14.3 10.3 381.0 16.50 27.00 51.00
¾ × 10 457.2 267.4 4.8 4.0 7.9 6.5 14.3 9.3 381.0 15.20 24.80 48.30
20 × 18 508.0 457.2 5.5 4.8 7.9 7.9 15.1 14.3 508.0 33.30 47.60 88.40
¾ × 16 508.0 406.4 5.5 4.8 7.9 7.9 15.1 12.7 508.0 30.60 43.80 83.90
¾ × 14 508.0 355.6 5.5 4.8 7.9 7.9 15.1 11.1 508.0 28.20 40.30 79.60
¾ × 12 508.0 318.5 5.5 4.5 7.9 6.5 15.1 10.3 508.0 25.90 37.00 66.30
22 × 20 558.8 508.0 5.5 5.5 9.5 7.9 15.9 15.1 508.0 36.90 63.20 99.40
¾ × 18 558.8 457.2 5.5 4.8 9.5 7.9 15.9 14.3 508.0 33.90 58.20 91.40
¾ × 16 558.8 406.4 5.5 4.8 9.5 7.9 15.9 12.7 508.0 31.20 53.50 84.10
24 × 22 609.6 558.8 6.4 5.5 9.5 9.5 17.5 15.9 508.0 47.00 69.30 125.30
¾ × 20 609.6 508.0 6.4 5.5 9.5 7.9 17.5 15.1 508.0 43.20 63.70 119.00
¾ × 18 609.6 457.2 6.4 4.8 9.5 7.9 17.5 14.3 508.0 39.80 58.60 114.00

캡


Nominal
Pipe Size
(Inch) 		Outside
Diameter
(OD) 		Wall Thickness(T) Center
to Center 		Back
to Face 		Overall
Length 		Weight(kg)
Sch.10S Sch.20S Sch.40S P K E Sch. 10S Sch. 20S Sch. 40S
180˚E Cap 180˚E Cap 180˚E Cap
½ 21.7 2.1 2.5 2.8 76.2 49.0 25.4 0.12 0.03 0.15 0.03 0.20 0.04
¾ 27.2 2.1 2.5 2.9 76.2 51.7 25.4 0.16 0.04 0.18 0.04 0.21 0.05
1 34.0 2.8 3.0 3.4 76.2 55.1 38.1 0.26 0.09 0.31 0.10 0.31 0.11
1¼ 42.7 2.8 3.0 3.6 95.2 69.0 38.1 0.43 0.11 0.53 0.12 0.53 0.14
1½ 48.6 2.8 3.0 3.7 114.4 81.5 38.1 0.58 0.13 0.61 0.14 0.75 0.17
2 60.5 2.8 3.5 3.9 152.4 106.5 38.1 0.99 0.17 1.16 0.21 1.32 0.24
2½ 76.3 3.0 3.5 5.2 190.6 133.5 38.1 1.65 0.23 1.89 0.28 2.77 0.42
3 89.1 3.0 4.0 5.5 228.6 158.9 50.8 2.29 0.37 3.02 0.48 4.10 0.67
3½ 101.6 3.0 4.0 5.7 266.8 184.2 63.5 3.08 0.55 4.04 0.70 5.67 1.13
4 114.3 3.0 4.0 6.0 304.8 209.6 63.5 3.96 0.59 5.23 0.78 7.72 1.17
5 139.8 3.4 5.0 6.6 381.0 260.4 76.2 6.87 0.99 9.99 1.44 13.02 1.90
6 165.2 3.4 5.0 7.1 457.2 311.2 88.9 9.79 1.39 14.30 1.99 19.98 2.83
8 216.3 4.0 6.5 8.2 609.6 413.0 101.6 20.10 2.38 32.40 4.05 40.40 5.11
10 267.4 4.0 6.5 9.3 762.0 514.7 127.0 31.20 4.13 50.30 6.23 71.20 8.92
12 318.5 4.5 6.5 10.3 914.4 616.5 152.4 52.10 6.39 72.60 8.89 114.0 13.10
14 355.6 4.8 7.9 11.1 1066.8 711.2 165.1 69.20 7.99 113.80 13.20 160.20 18.60
16 406.4 4.8 7.9 12.7 1219.2 812.8 177.8 90.60 10.10 149.00 16.70 239.20 26.70
18 457.2 4.8 7.9 14.3 1317.6 914.4 203.2 117.00 12.90 191.10 21.30 341.10 41.50
20 508.0 5.5 7.9 15.1 1524.0 1016.0 228.6 165.40 18.50 283.40 31.80 455.40 51.30
22 558.8 5.5 9.5 15.9 1676.4 1117.6 254.0 200.30 22.60 345.50 38.80 568.30 65.80
24 609.6 6.4 9.5 17.5 1828.8 1828.8 266.7 275.10 30.10 409.40 45.10 744.10 84.20

플렌지


호칭

지름

삽입 구멍의 지름 (d)

플랜지의 각부 치수

볼트구멍 볼트 나사의 호칭
바깥지름(D) 두께(t)
중심의 지름(C)
수
지름(h)

15

 22.2 95 12 70 4 15 M12

20

 27.7 100 14 75 4 15 M12

25

 34.5 125 14 90 4 19 M16

32

 43.2 135 16 100 4 19 M16

40

 49.1 140 16 105 4 19 M16

50

 61.1 155 16 120 4 19 M16

65

 77.1 175 18 140 4 19 M16

80

 90.0 185 18 150 8 19 M16

100

 115.4 210 18 175 8 19 M16

125

 141.2 250 20 210 8 23 M20

150

 166.6 280 22 240 8 23 M20

200

 218.0 30 22 290 12 23 M20

250

 269.5 400 24 355 12 25 M22

300

 321.0 445 24 400 16 25 M22

350

 358.1 490 26 445 16 25 M22

400

 409.0 560 28 510 16 27 M24

450

 460.0 620 30 565 20 27 M24

500

 511.0 675 30 620 20 27 M24

1. Flanges of parenthesized nomial diameter had better not be used.
2. The facing of flanges shall conform to KS B 1519 (JIS B2202) 1984.
3. Nominal diameter over 1000 is manufacturer's standard(*)

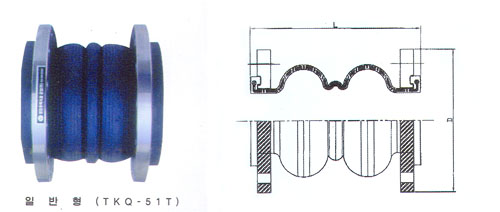

콘넥타


< 제품의 특징 >

1. Nylon Tire Cord 사를 이용하여 제품의 피로 및 고온, 고압에 견딜 수 있도록 보강

2. 재질은 합성고무(Neoprene)또는 3층 합성고무 (EPDM)로써 고온, 고압, 내마모성, 내온존성, 내열성, 유연성, 내산화성 우수

3. 유체의 흐름을 원활히 하기 이해 Connector 내부에 Rib 형성


< 제품의 구조 >

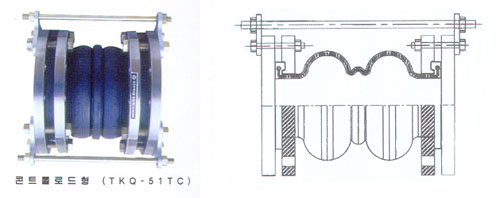

1. Control Rod 는 배관계의 압력이 허용 압력이상이 되어 과대 팽창 및 수축으로 파손되는 위험으로부터 보호하기 위해 설치합니다.


< 고무 재질별 특성 >

특성, 종류
NEOPRENE
 E.P.D.M
*비중
1.15~1.25
 0.91~0.93
*인중강도
50~250kg/㎠
 50~150kg/㎠
*내열성
130Q
 150Q
*내한성
-35Q ~ -55Q
-40Q ~ -60Q
*가솔린경유
양호
 나쁘다
*내수중기성
보통
 우수하다
*용도
접착제,
전선피복,
방진고무등
전선피복,
창틀,
방진고무

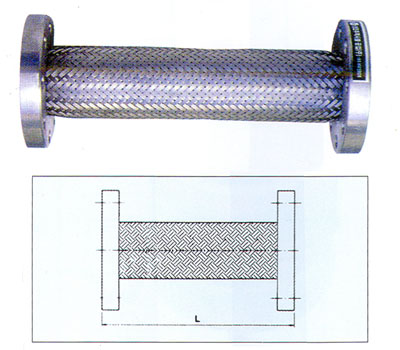

죠인트


< 부품 및 명칭 >

부품명 재질
*FLANGE SS400
*BELLOWS
STS 304/316L
*BRAID
STS 304

< 제품의 규격(TKF-31S) >

MODEL
 길이(mm) 브레이드종류 최고사용압력(상온일 경우)kg/㎠ 중량 (kg)
1중 Braid 2중 Braid
20A *200 *WIRE 24 45 4
25A *200 *WIRE 24 45 4
32A *200 *WIRE 20 36 5
40A *230 *WIRE 18 34 5
50A *230 *WIRE 15 28 6
65A *230 *WIRE 12 20 8
80A *230 *WIRE 12 20 9
100A *230 *WIRE 12 20 13
125A *280 *WIRE 10 18 16
150A *280 *WIRE 10 18 20
200A *300 *RIBON 10 18 30
250A *300 *RIBON 10 18 50
300A *300 *RIBON 10 18 70
